Let L-410 UVP-E Turbolet (1 850 mm)
Description
Enlarged semi-scale model of our 410 which is also made of very durable foam material EPP. The wingspan of this model is 1850 mm, which correlates with the scale of ~1/10,8.
Thanks to CNC machining, all the parts of this model are very accurate and every joint is almost invisible. The kit includes everything needful for the model construction besides glues and carbon reinforcements.
The model has retractable and steerable landing gear, slotted flaps and a detachable wing which can be easily divided into two parts for an easier transfer.

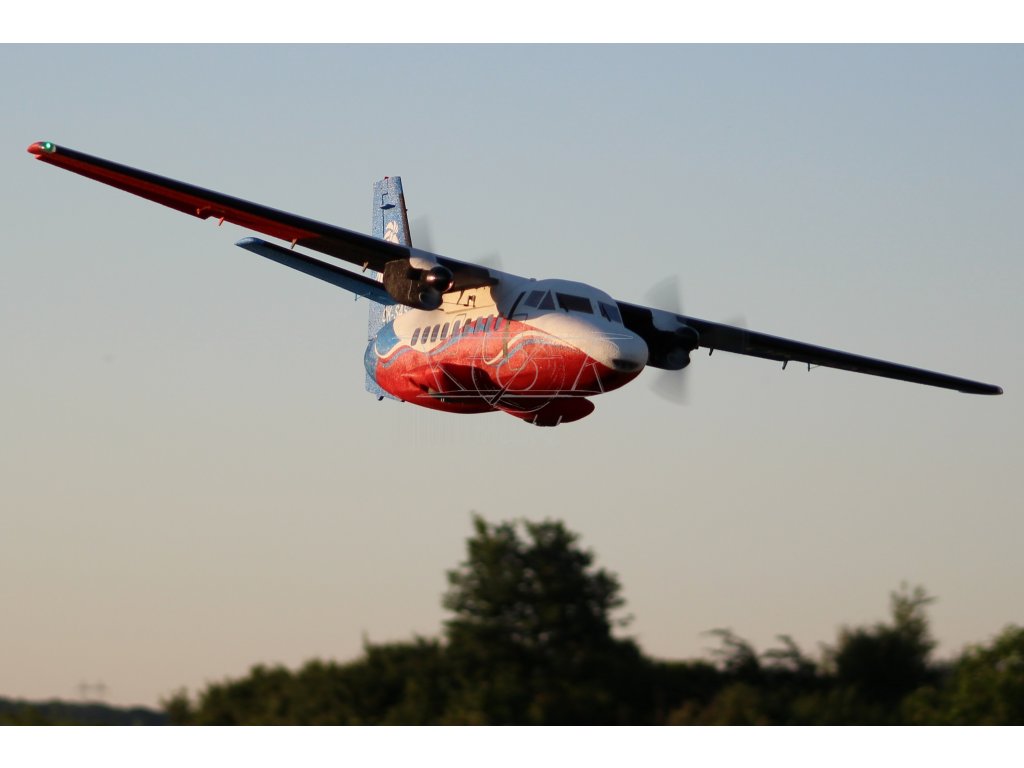

Video of the flight: https://www.youtube.com/watch?v=sAhtCq39mG4
The model is delivered as an uncolored kit without electronics and without carbon reinforcements (electric retractable nose gear is included in the kit).
Specifications:
|
1 850 mm |
||
| Material: | EPP |
|
| Wing Span: | 1 850 mm | |
| Length: | 1 350 mm | |
| Weight: | ~2 500 - 2 600 g | |
| Wing Area: | 31,9dm2 | |
| Controlled Functions: | M, A, E, R, Flaps, Landing gear | |

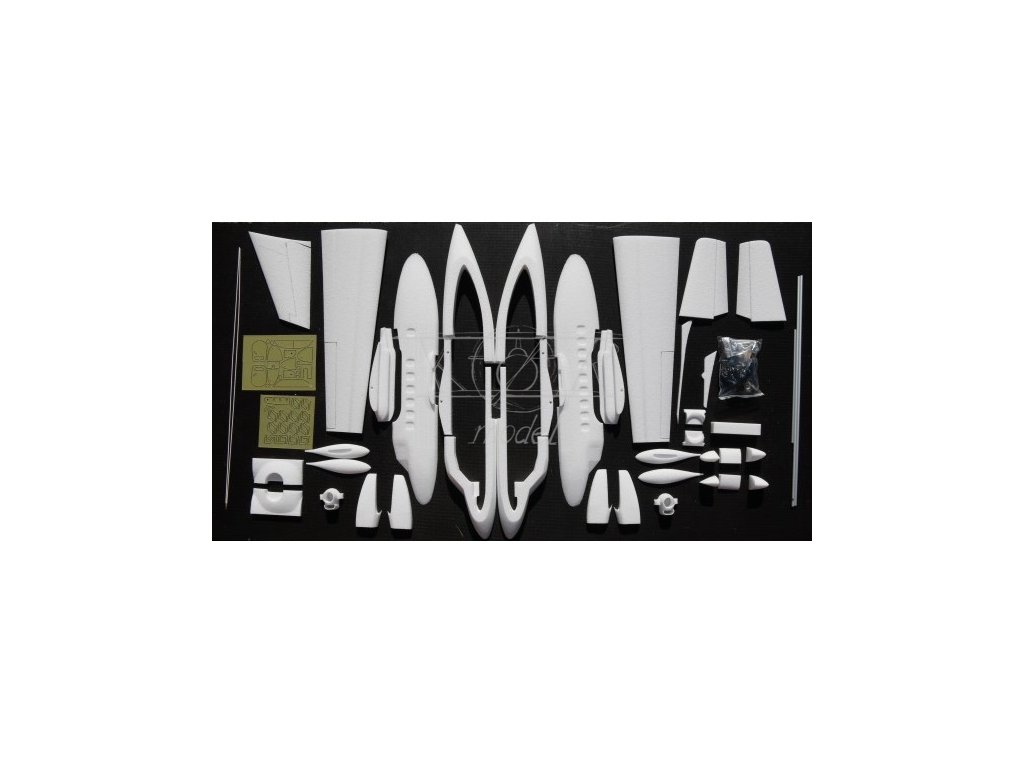

Set includes:
| parts (not colored): | Accessories: |
| -Fuselage | -Glass-epoxide laminates and plywooden parts |
| -Centroplane | -Hinges |
| -Wings including flaps and ailerons | -Levers |
| -Wing fuel tanks | -Alu. tubes (for the wings) |
| -Engine nacelle | -Bowdens + clevis |
| -Tail group (empennage) | -Wheels |
| -Scale model brakes | |
| -Wing joint | |
| -Wing / fusalage fixing system | |
| -Mechanism of retractional landing gear | |
| -Streerable landing nose gear with suspensions | |
| -Servomechanism for the nose landing gear | |
| -Stop collar |
-----------------------------------------------------------------------------------------------------------------------------------------
Semi-Scale-Model des Transportflugzeuges der tschechischen Produktion aus extrem widerstandsfähigem EPP-Schaum.
Dank der CNC 3D Fräs-Technologie sind die Teile sehr passgenau und die verklebten Verbindungen fast unsichtbar! Der Baukasten enthält alles, was benötigt wird um das Modell zu bauen, außer der Elektronik, Klebstoffen und Carbonverstärkungen, siehe die Anweisungen in der Bauanleitung (Download).
Das fertige Modell hat einen abnehmbaren Flügel und Fahrwerk.
(Optional können Sie die Landeklappen abschneiden un ansteuern, siehe dazu die Bauanleitung von der Zlín Z-37A)
Geliefert wird das Modell als ungefärbter Baukasten ohne Elektronik und Carbonverstärkungen.
